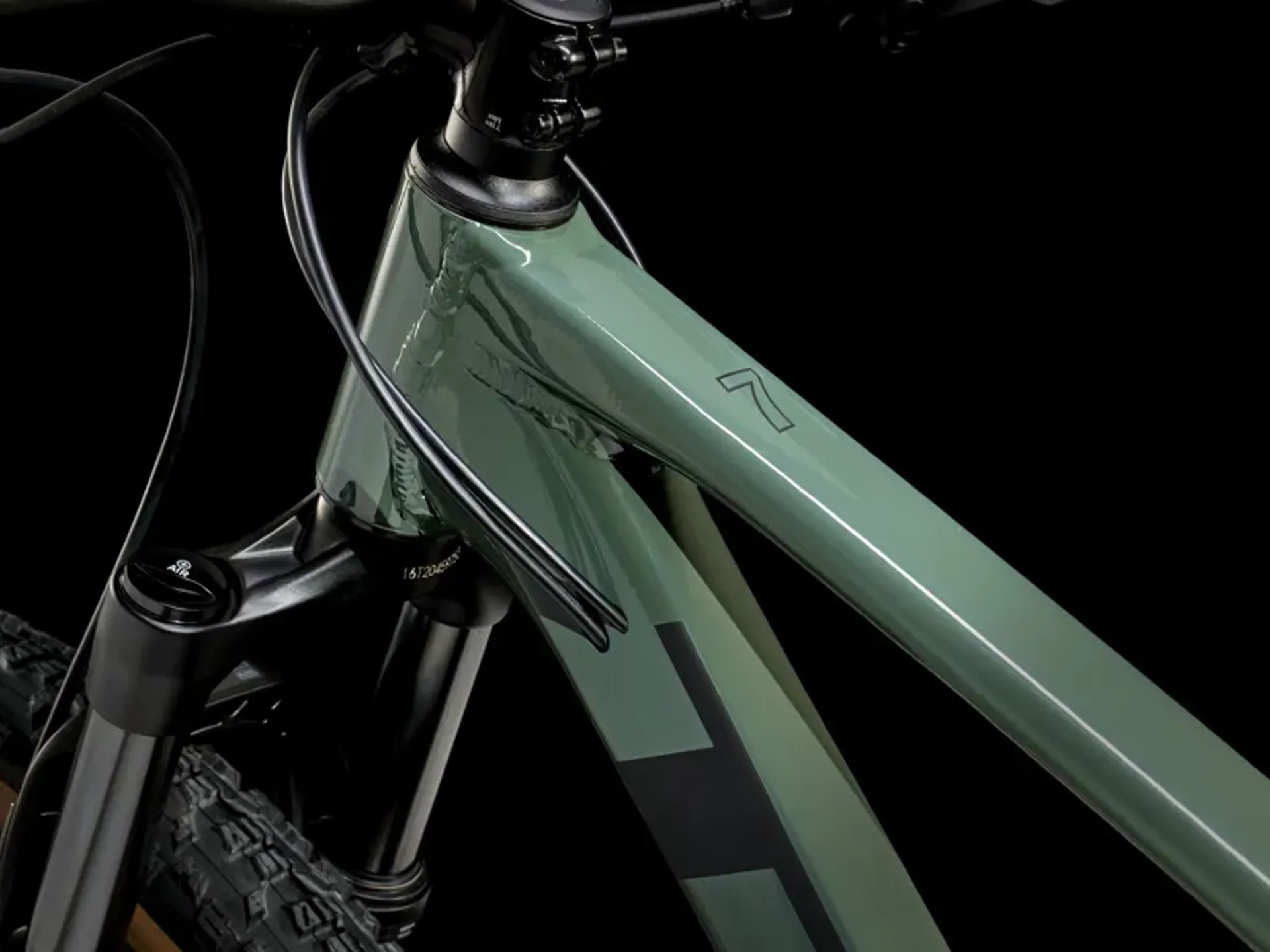

Frame
Size: XXS , XS - Alpha Silver Aluminium, curved top tube, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew
Size: S , M , ML , L , XL , XXL - Alpha Silver Aluminium, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew
Fork
Size: XXS - RockShox Judy Silver, Solo Air spring, rebound adjust, TurnKey hydraulic lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 80 mm travel
Size: XS , S - RockShox Judy Silver, Solo Air spring, rebound adjust, TurnKey hydraulic lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 100 mm travel
Size: M , ML , L , XL , XXL - RockShox Judy Silver, Solo Air spring, rebound adjust, TurnKey hydraulic lockout, 46 mm offset for 29" wheel, 100 mm QR, 100 mm travel
Max compatible fork travel
120mm, XXS: 80mm
Hub front
Formula DC-20 LW, alloy, 6-bolt, 5x100 mm QR
Hub rear
Formula DC-22LW, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR
Skewer rear
173x5 mm QR
Rim
Bontrager Kovee, double-wall, Tubeless-Ready, 28-hole, 23 mm width, Presta valve

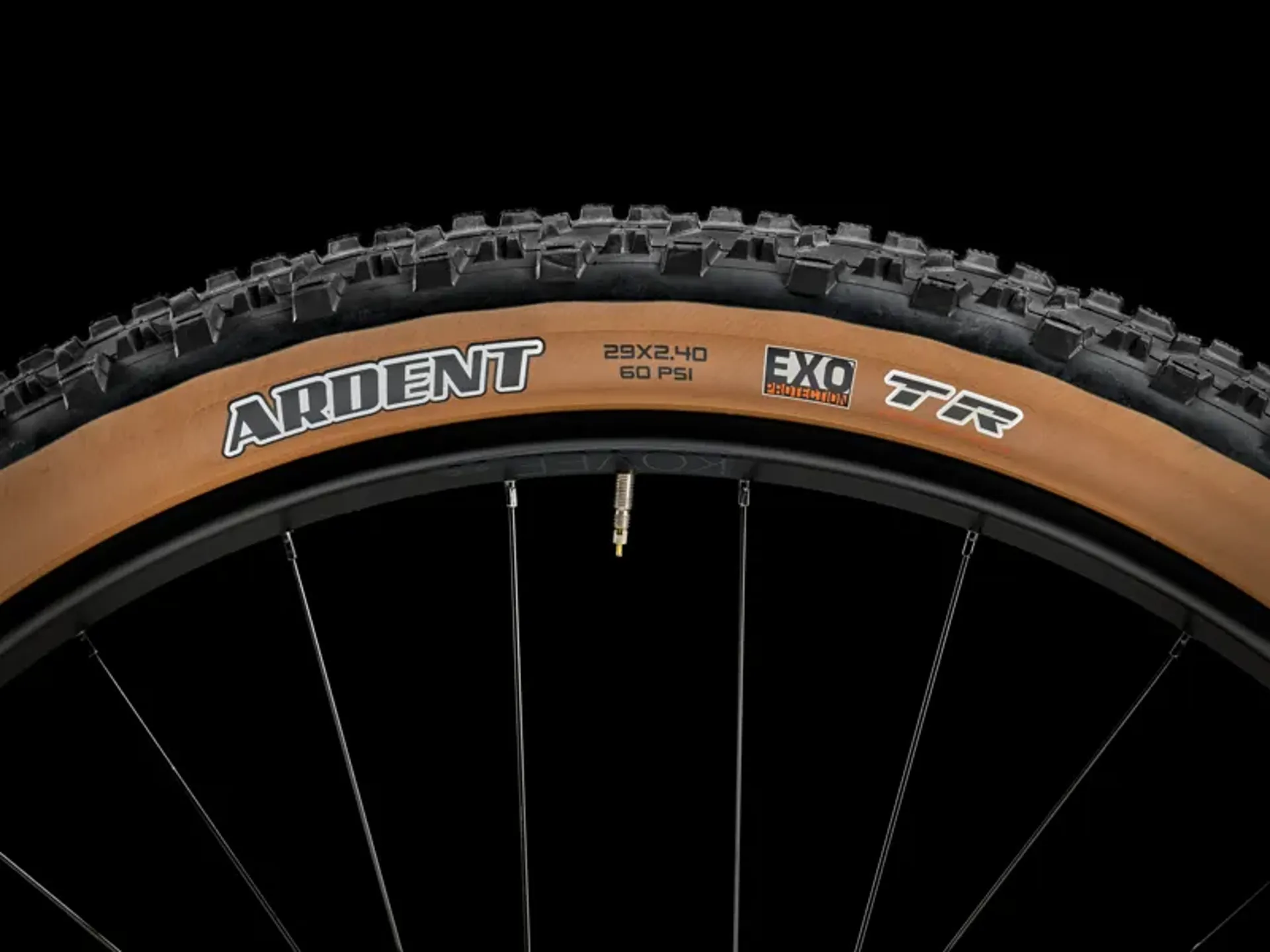

Tyre
Size: XXS - Maxxis Ardent, tubeless ready, EXO casing, folding bead, 60tpi, 26x2.40"
Size: XS , S - Maxxis Ardent, tubeless ready, EXO casing, folding bead, 60tpi, 27.5x2.40"
Size: M , ML , L , XL , XXL - Maxxis Ardent, tubeless ready, EXO casing, folding bead, 60tpi, 29x2.40"
Max tyre size
Frame: 29x2.40" (XXS: 26x2.40", XS & S: 27.5x2.40"), Fork: See manufacturer
Shifter
SRAM SX Eagle, 12-speed

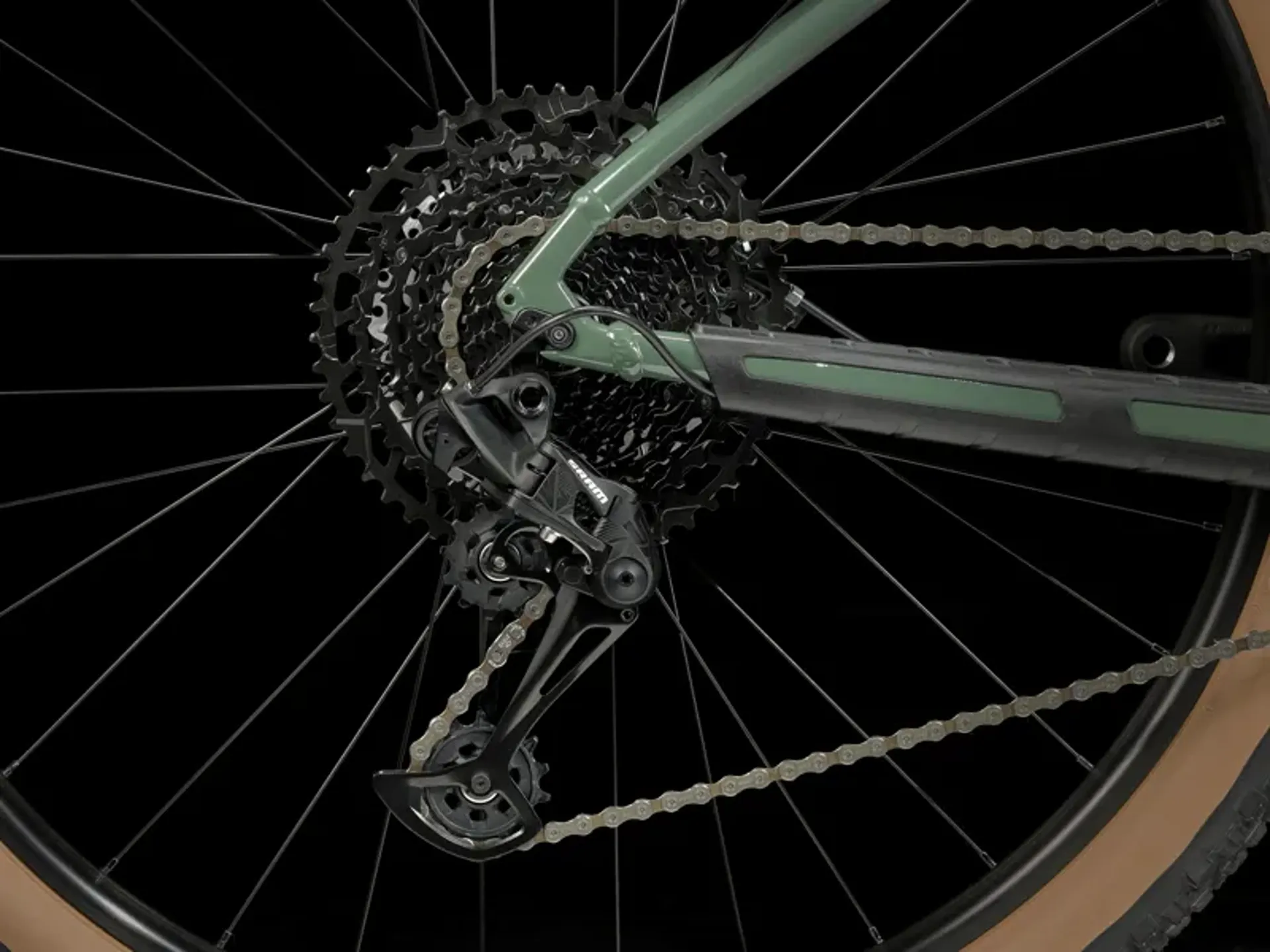

Rear derailleur
SRAM SX Eagle

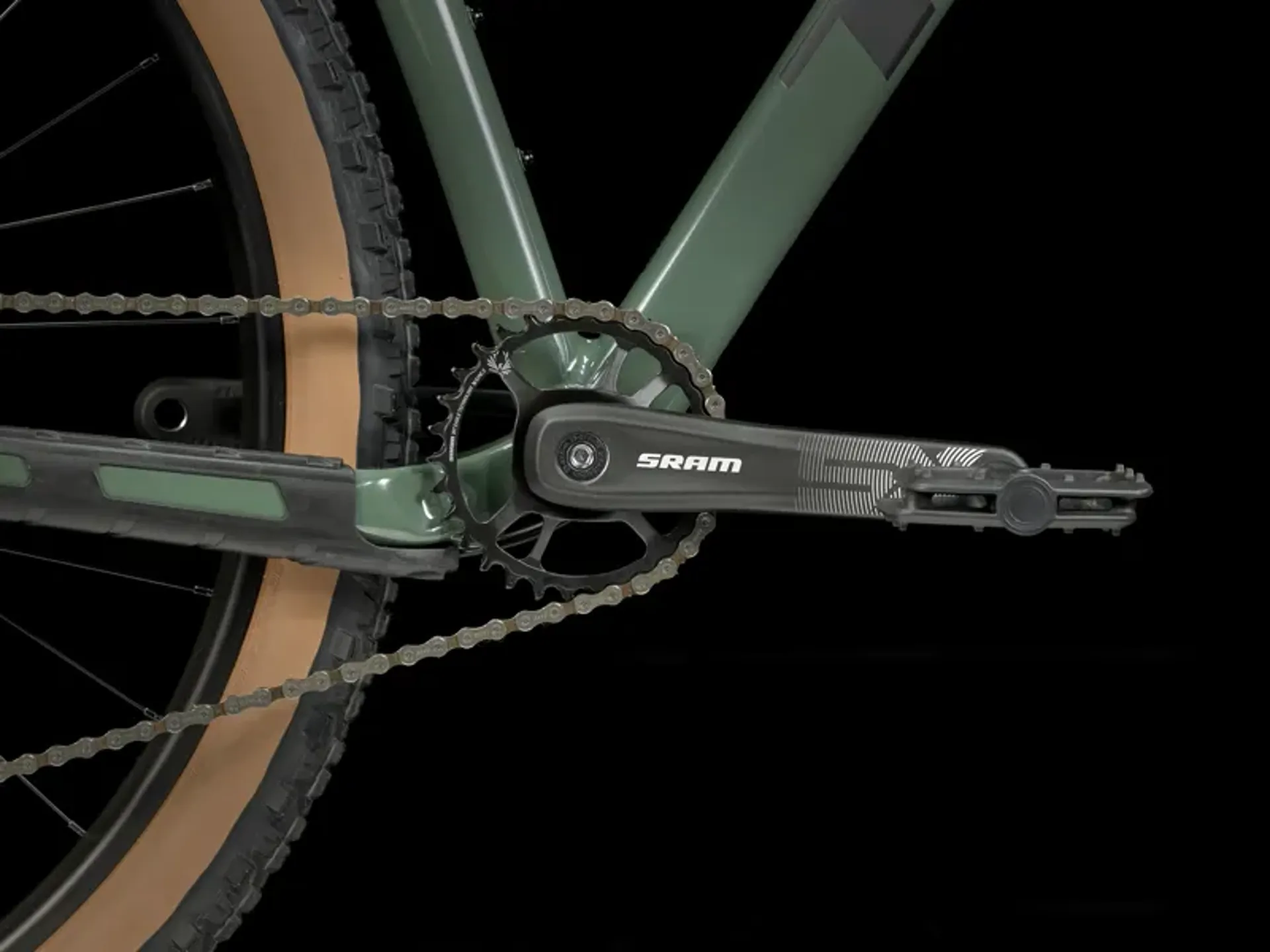

Crank
Size: XXS - SRAM SX Eagle, 30T steel ring, 49 mm chainline, 155 mm length
Size: XS , S , M - SRAM SX Eagle, 30T steel ring, 49 mm chainline, 170 mm length
Size: ML , L , XL , XXL - SRAM SX Eagle, 30T steel ring, 49 mm chainline, 175 mm length
Bottom bracket
Truvativ Powerspline, 73 mm, threaded cartridge, 118 mm spindle
Cassette
SRAM PG-1210 Eagle, 11-50, 12-speed
Chain
SRAM SX Eagle, 12-speed
Pedal
VP-536 nylon platform
Max. chainring size
1x: 34T, 2x: 36/22
Saddle
Bontrager Verse Short, stainless steel rails
Seatpost
Size: XXS , XS , S - TranzX JD-YSP18, 100 mm travel, internal routing, 31.6 mm, 361 mm length
Size: M - TranzX JD-YSP18, 130mm travel, internal routing, 31.6 mm, 425 mm length
Size: ML , L , XL , XXL - TranzX JD-YSP18, 150 mm travel, internal routing, 31.6 mm, 470 mm length
Handlebar
Size: XXS , XS - Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width
Size: S - Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width
Size: M , ML , L , XL , XXL - Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
Grips
Bontrager XR Trail Comp, nylon lock-on
Stem
Size: XXS , XS , S - Bontrager Comp, 31.8 mm, 7-degree, 35 mm length
Size: M , ML , L - Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length
Size: XL - Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 60 mm length
Size: XXL - Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 70 mm length
Head set
Semi-integrated, 1-1/8"
Brake
Shimano MT200 hydraulic disc
